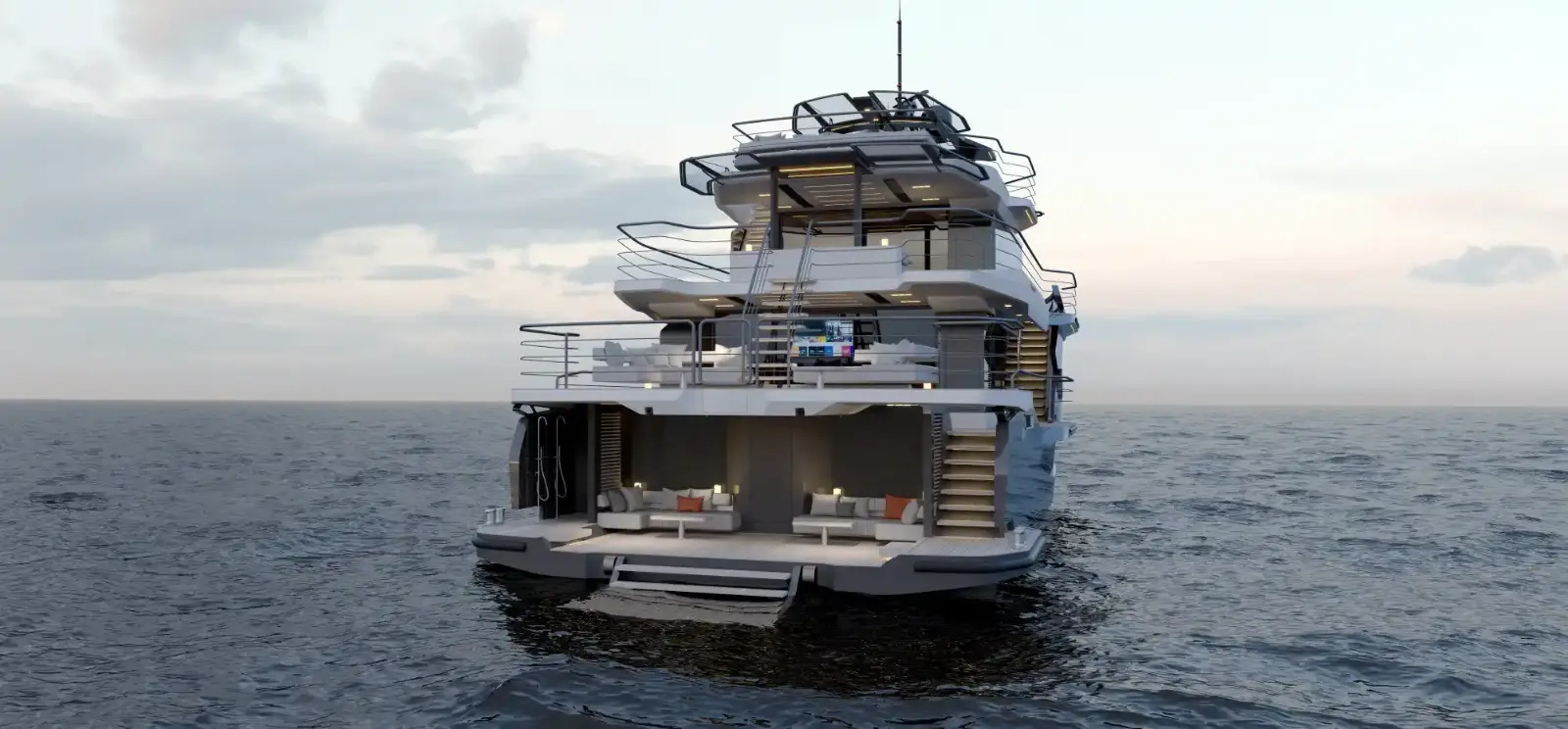

F115 TRIDECK
The Fabbro F115 Trideck represents the pinnacle of Fabbro Yachts’ craftsmanship and engineering. Spanning 35 meters across three expansive decks, it offers generous entertainment spaces, luxurious owner and guest accommodations, and dedicated quarters for the captain and crew. Designed for long-range cruising, it seamlessly blends sophisticated design, advanced technology, and extensive customization possibilities, creating an exceptional superyacht experience for the most discerning owners.
TECHNICAL SPECIFICATIONS
DIMENSIONS
- Length: 35 m / 115 ft
- Max Beam: 8.00 m (+0.80) / 26.25 ft (+2.63)
- Length Waterline 31.2 m / 102.5 ft
- Draft: 2.15 m / 7.05 ft
- Class: RINA Charter Class
- Construction Material: Steel Hull / Aluminium Superstructure
PERFORMANCE
- Main Engines MAN 882 kW / 1182 hp @ 2100 RPM x2
- Max Speed: 15 knot
- Cruising Speed: 12 knot
- Gearbox: ZF
- Propellers: Q1200 FIXED PITCH
- Generators: KOHLER 55 kW x 2
TANKS
- Fuel Capacity: 25000 L / 6605 gal
- Black Water Tank: 4000 L / 1057 gal
- Water Tank: 7000 L / 1850 gal
INTERIORS
- Maximum capacity: 12 & 7
- Interior Area: 5 Cabins (1 Master, 1 VIP, 1 Guest, 1 Crew, 1 Captain Cabin)
- Design: CORD Design

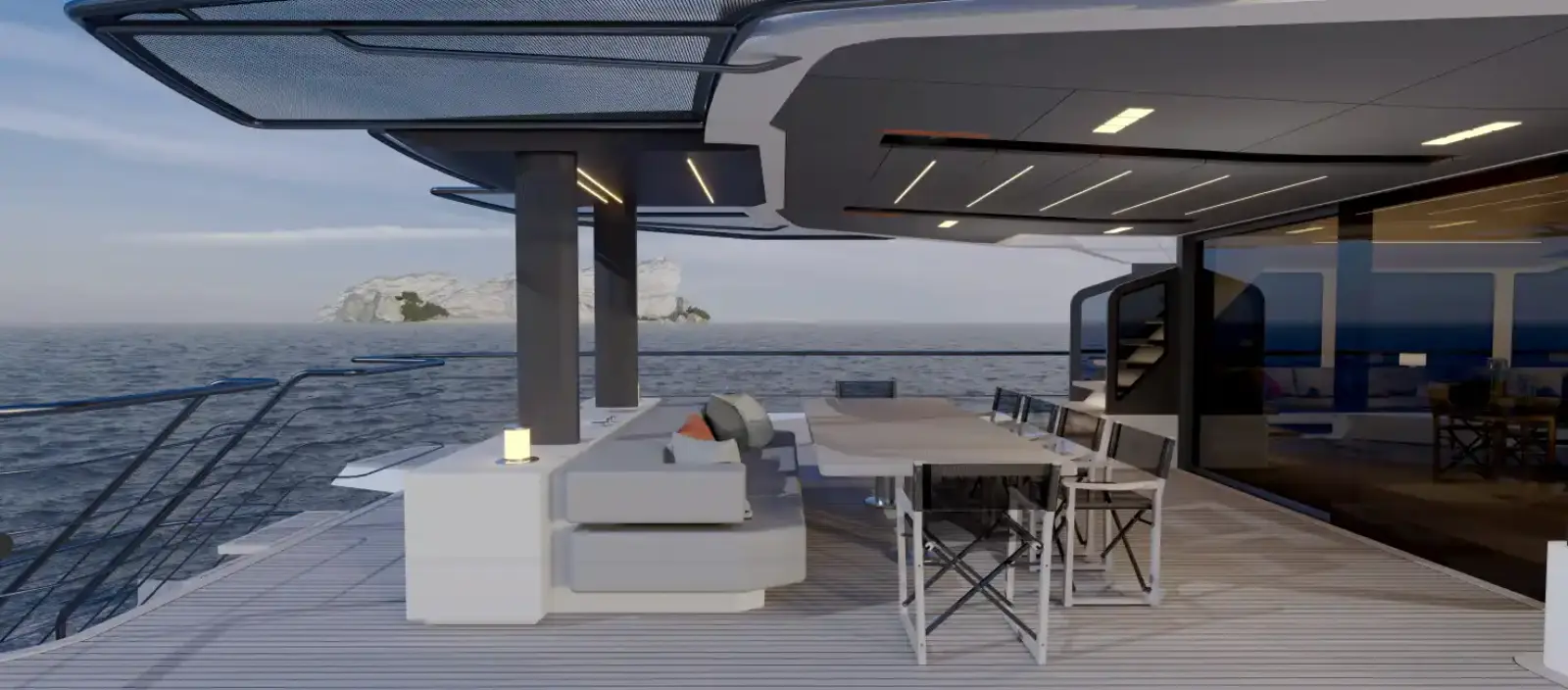

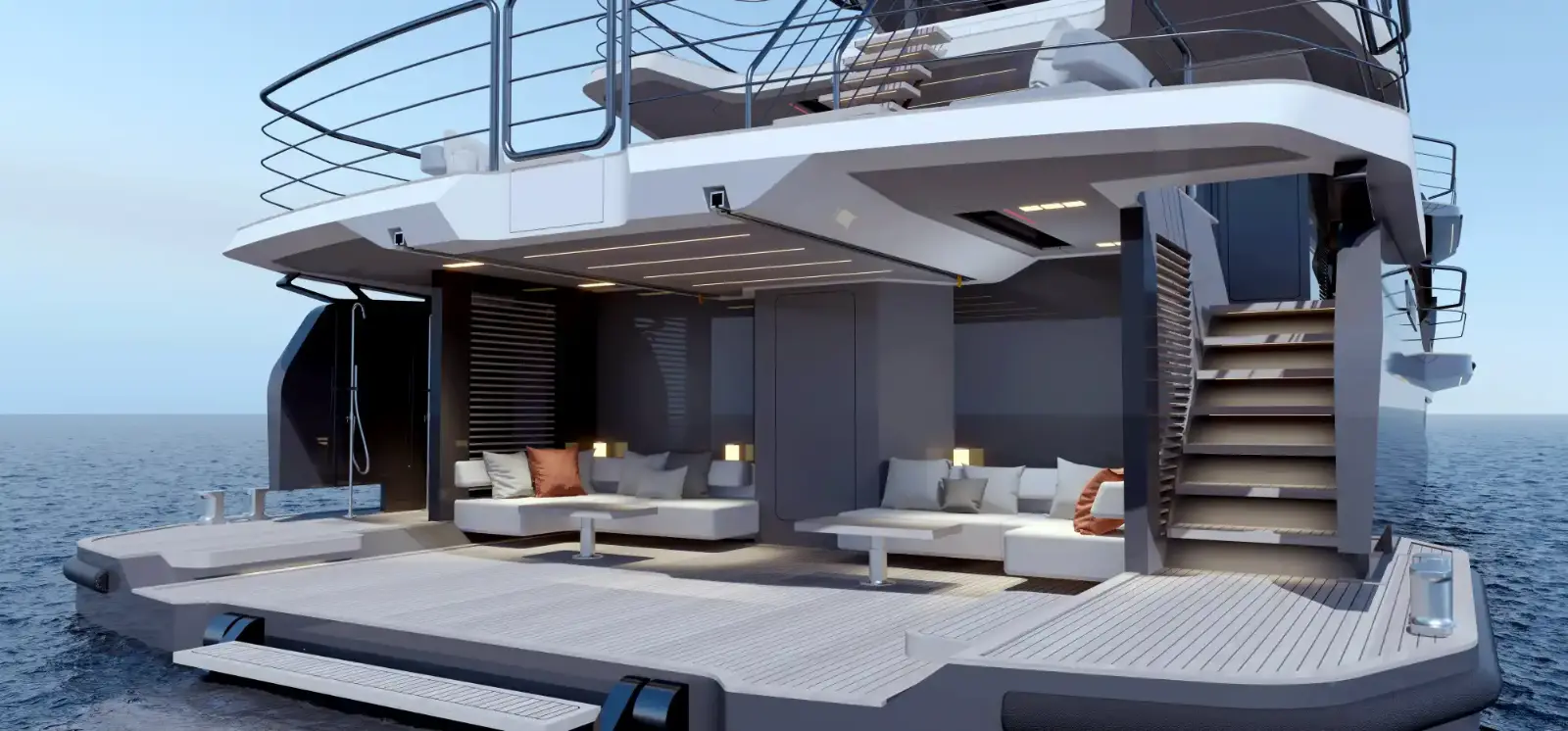

EXTERIOR

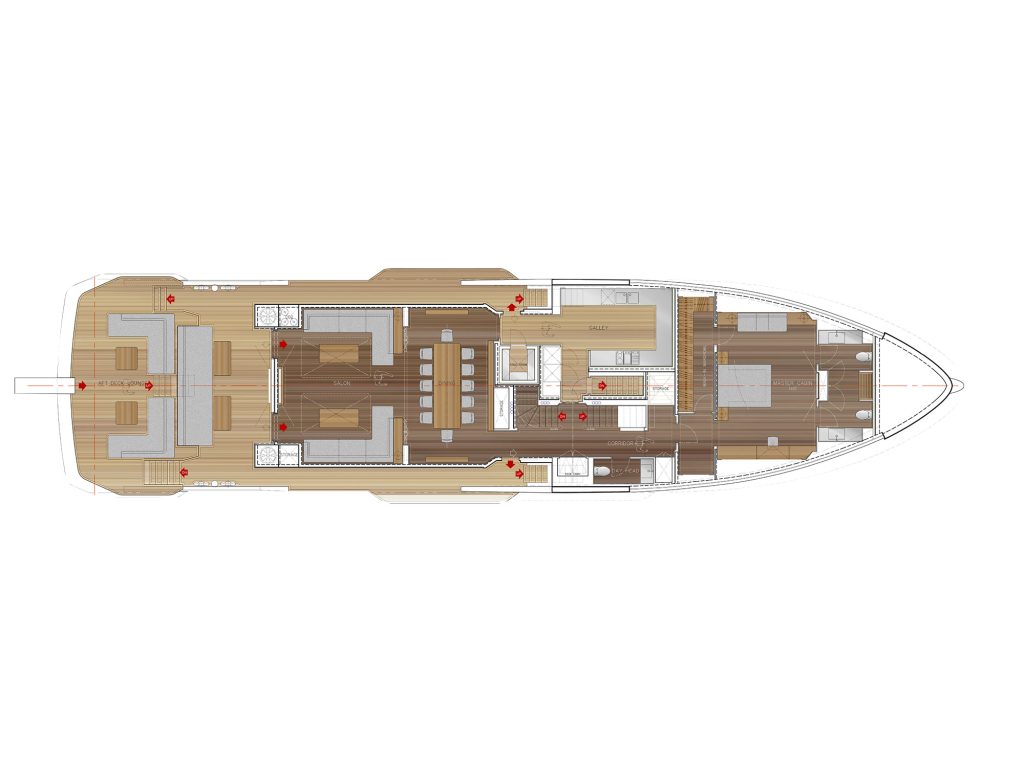

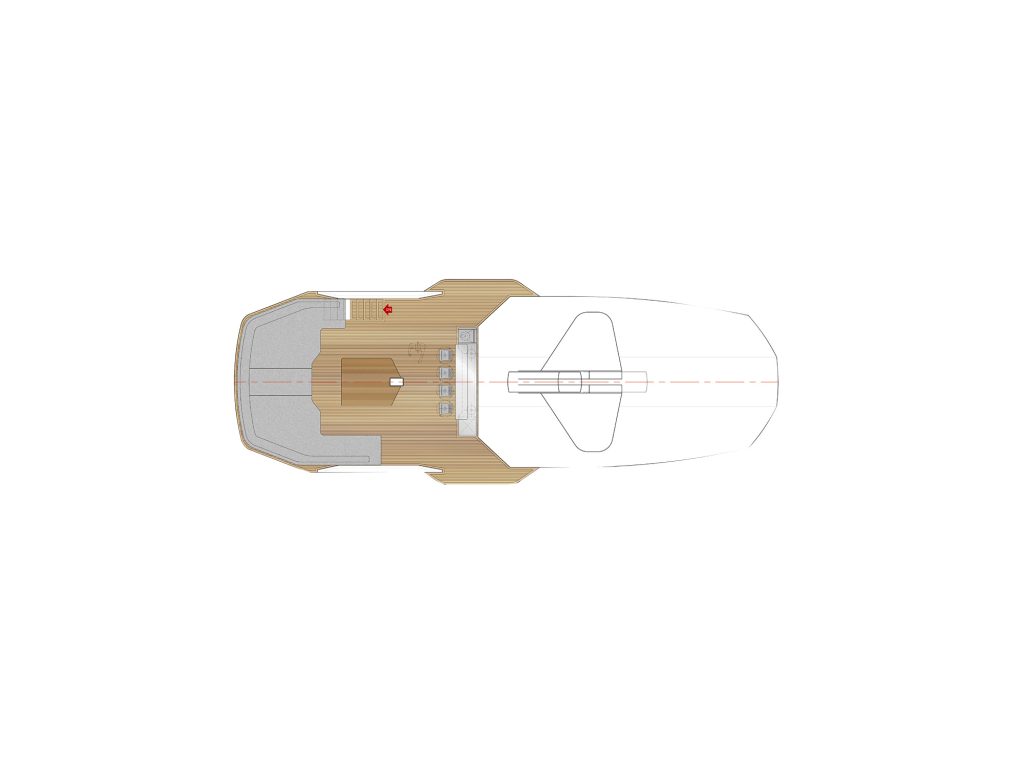

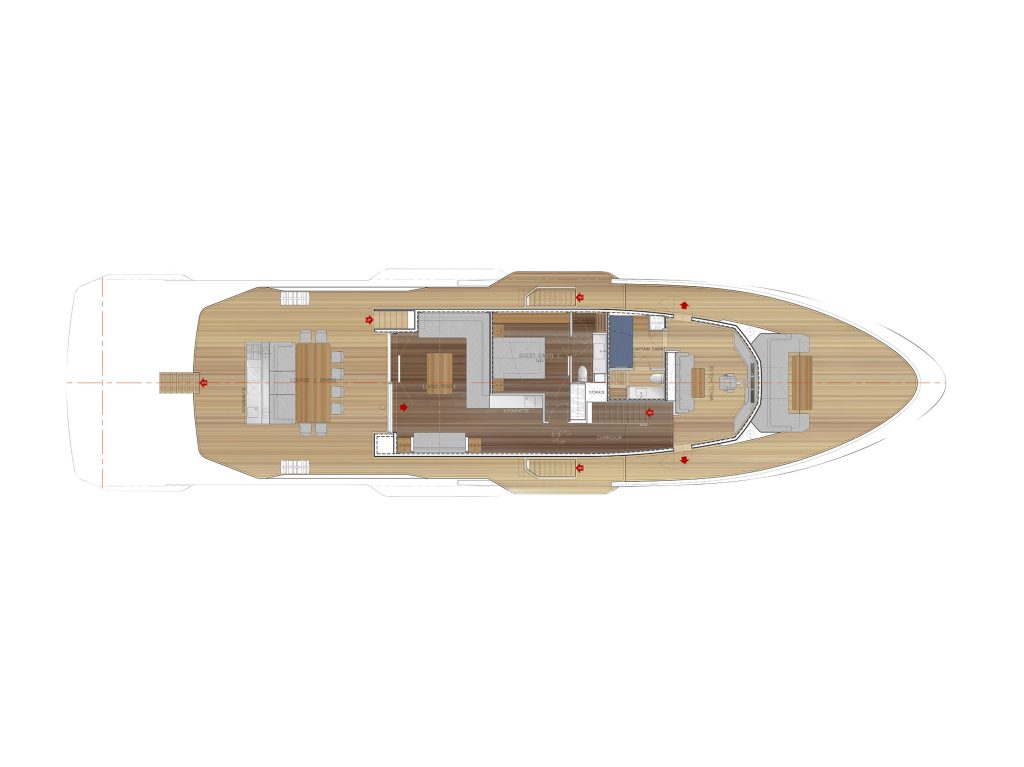

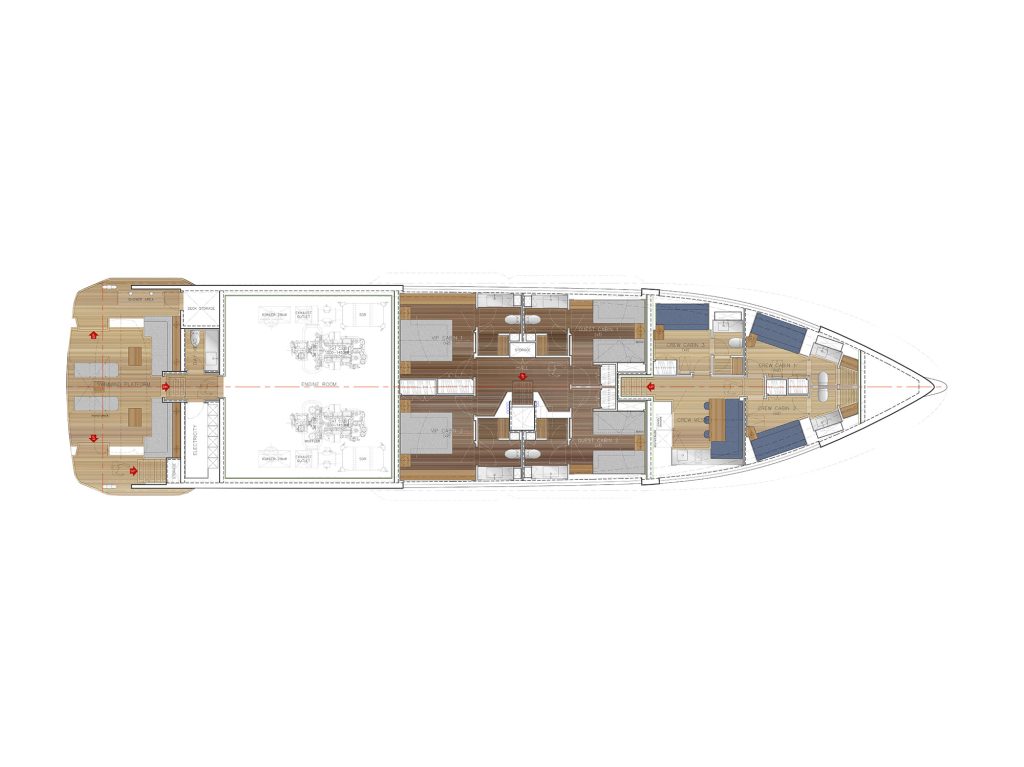

Layouts
