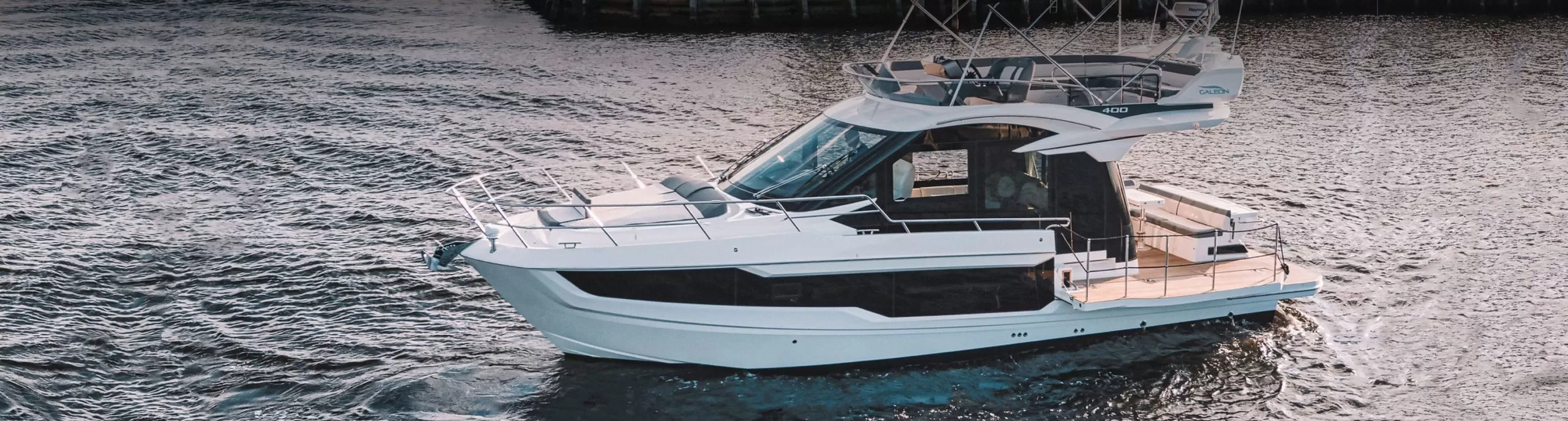

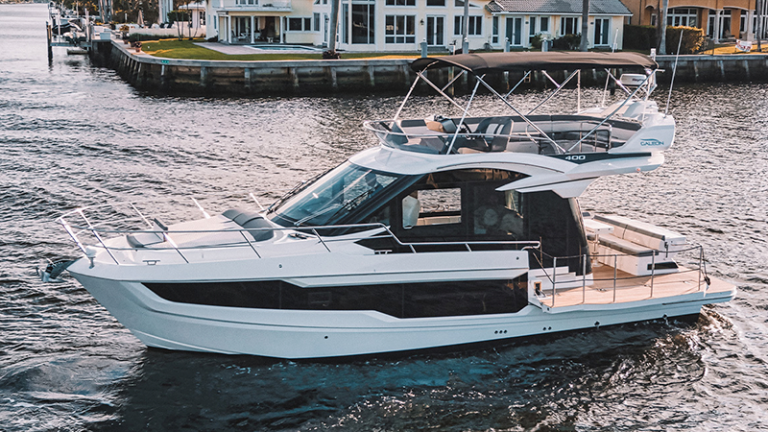

Galeon 400 Fly
Galeon 400 FLY joined the fourth-generation yacht family, as one of the smallest models to offer the innovative “beach mode”. The yacht has been designed to offer the highest tier of manoeuvrability and stability while on the waves. The interior comes in a few possible modern variants, with additional options available upon request.

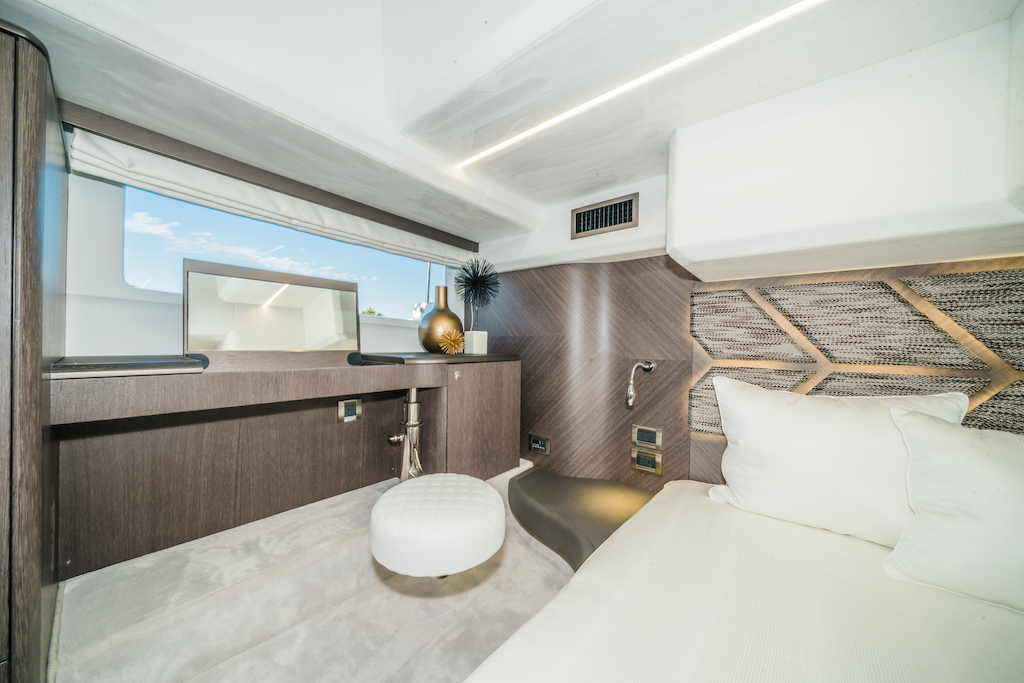

Below deck, the guests will find two full-sized cabins, one of which, the owner’s cabin, is situated in the aft. Two separate bathrooms offer extra comfort to the guests. All the cabins allow the guests full standing height and additional storage space, ideal for longer cruises.
TECHNICAL SPECIFICATIONS
DIMENSIONS
- Length overall 41’ 0” / 12.50 m
- Hull length 36’ 4” / 11.1 m
- Beam 12’ 11” / 3.7 m
- Dry weight 25,980 lb / 11,784 kg
- Maximum load weight 32,280 lb / 14,642 kg
- Draft (maximum) 3’ 9” / 1.02 m
- Height (including mast light) 15’ 10” / 4.82 m
- Height (foldable mast down) 12’ 10” / 3.91 m
PERFORMANCE
- Twin Volvo Penta D6-440 (T-440 HP – 324 KW)
- Diesel engines
- Straight Shaft, V Drive Transmission
- Propellers (NiBrAl)
- Propellers Shafts (Stainless Steel)
- Electronic Vessel Control System
- Exhaust, wet
- Hydraulic steering system
- Rudder (NiBrAl)
- Trim tabs, hydraulic with indicators
TANKS
- FUEL CAPACITY 264 GAL / 1,000 L
- WATER CAPACITY 132 GAL / 500 L
- BLACK WATER CAPACITY 39 GAL / 150 L
INTERIORS
- Cabins 2
EXTERIOR
INTERIOR

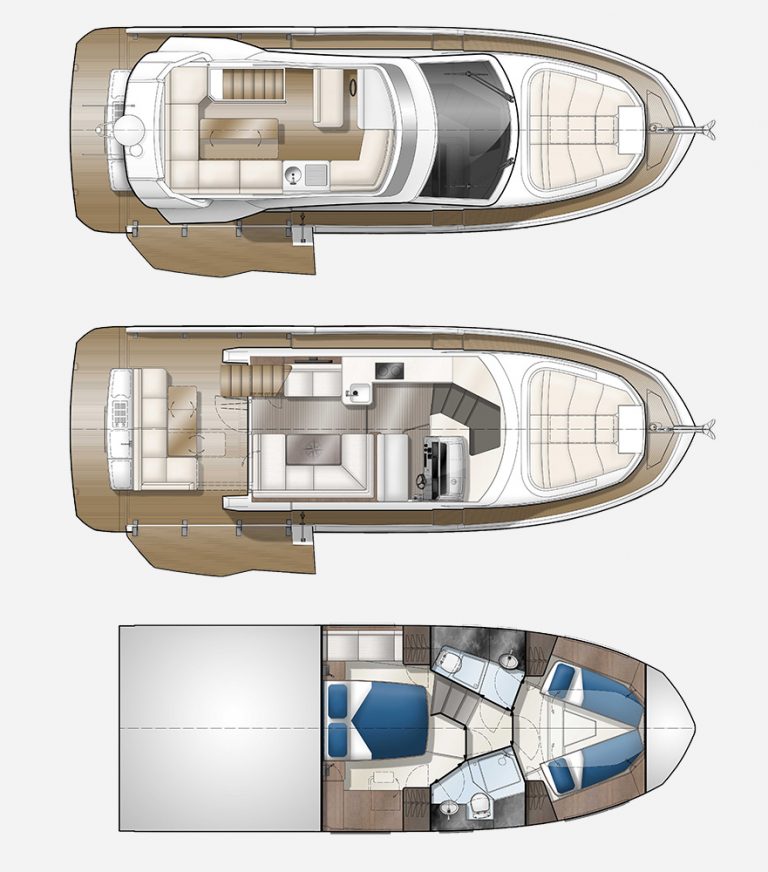

Layouts
