Sirena 68 ‘BOLD is Beautiful’

Sirena 68 ‘BOLD is Beautiful’

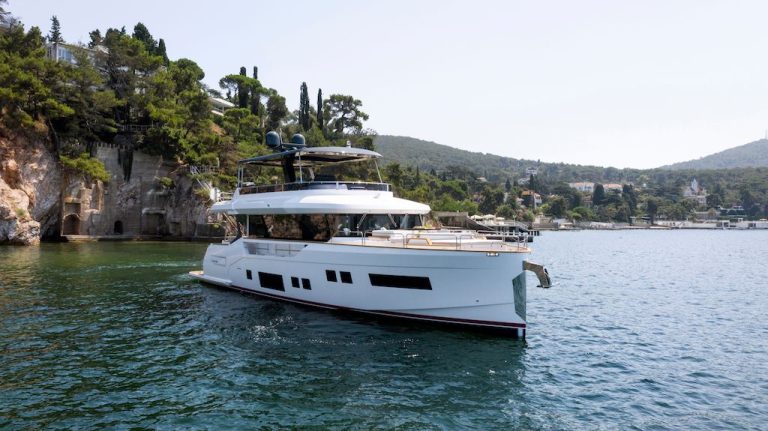

The goal of the Sirena 68 hull design was to offer efficiency at speeds ranging from long-range cruising to planning. A slippery hull with minimal appendage drag gave the range numbers we were looking for, while optional power choices increased the top end.

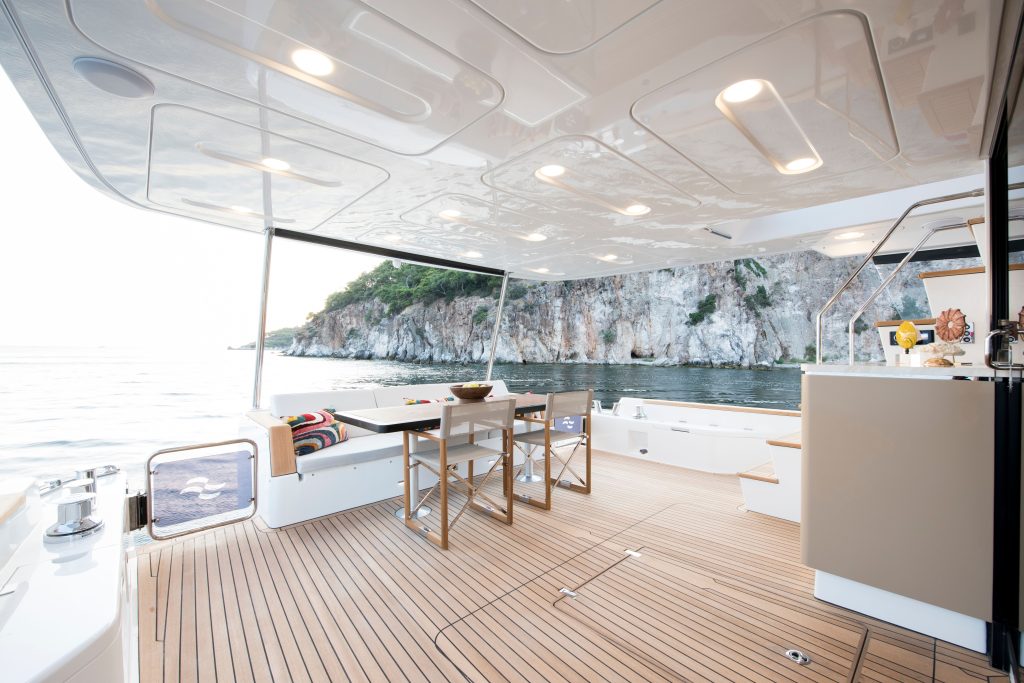

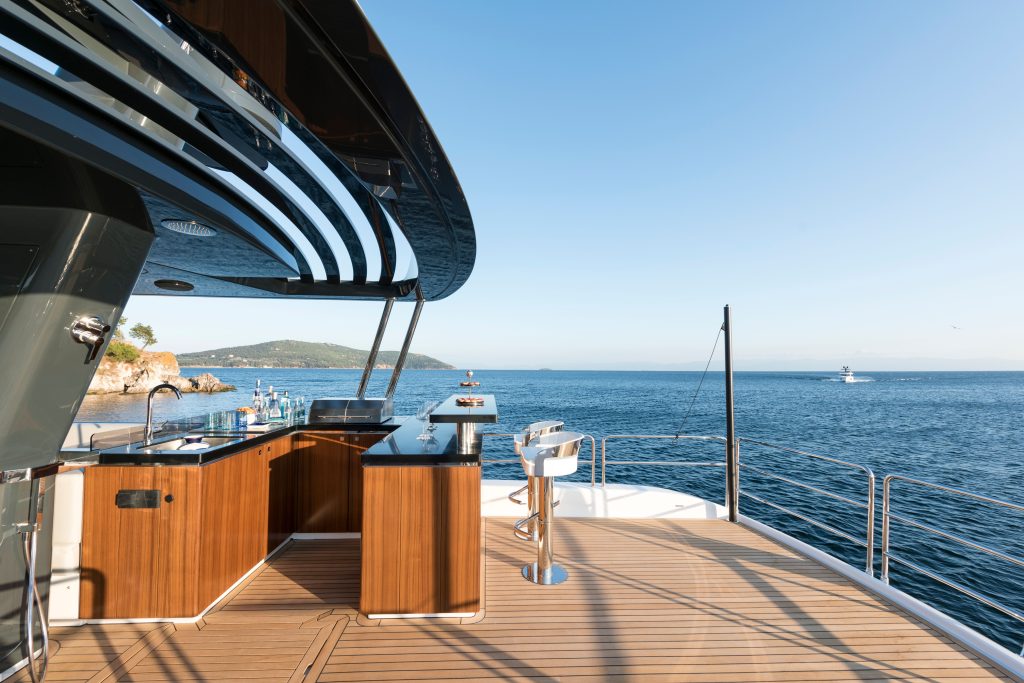

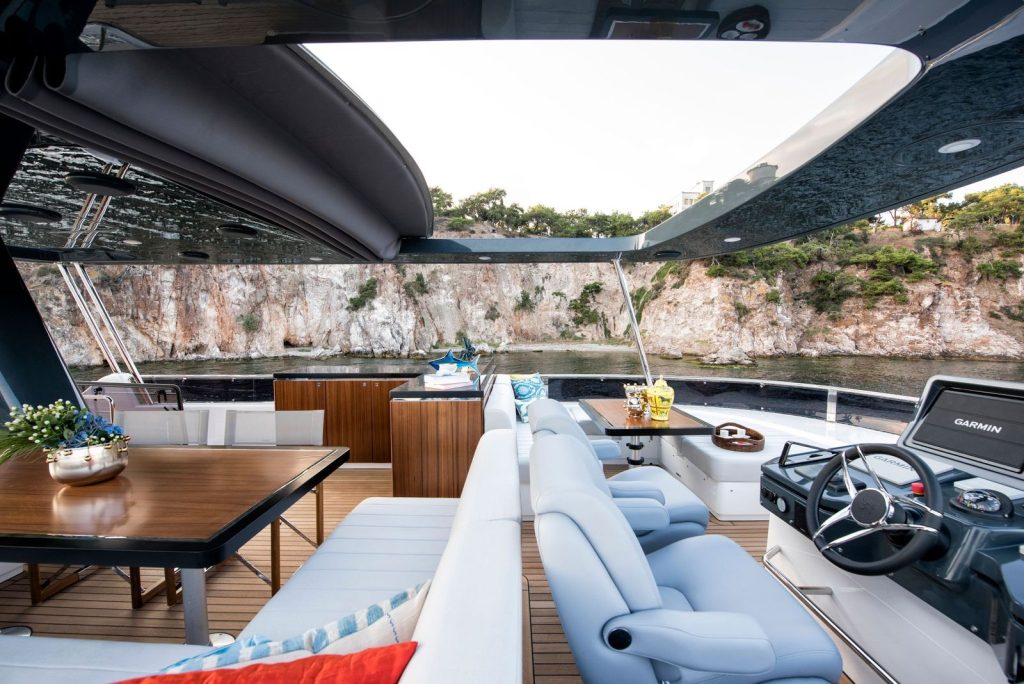

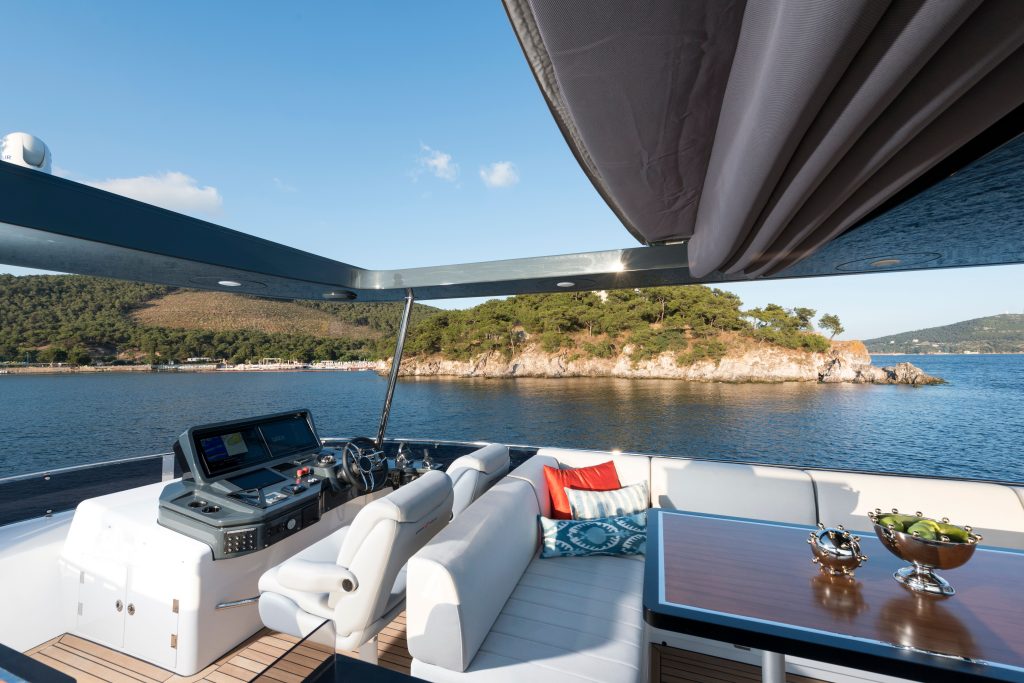

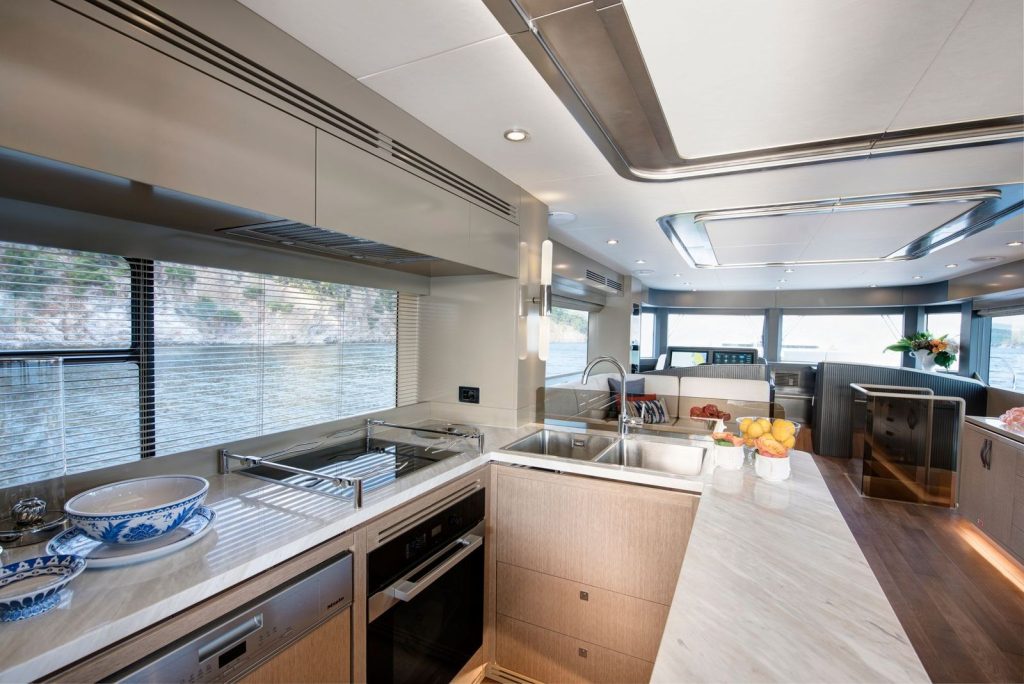

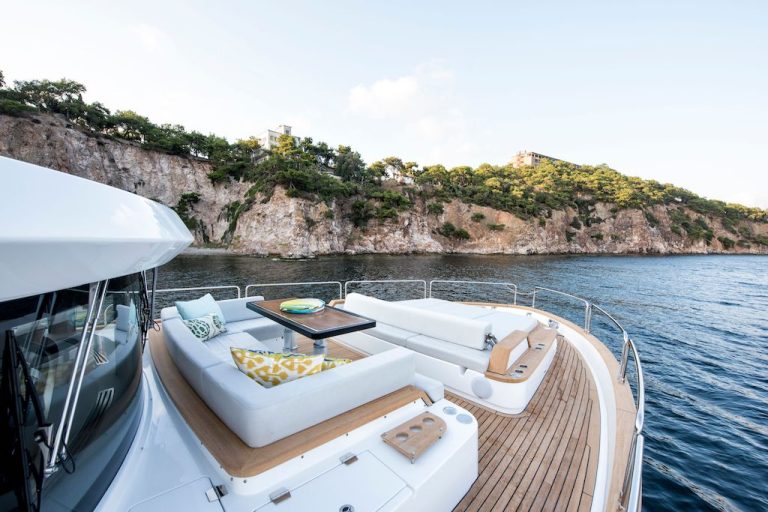

The shape of the hull also creates interior volume that changes the onboard experience for the owners and their guests. Anyone who sets foot on this yacht will find space to allow gatherings of large groups together, as on the flying bridge, the aft deck area, or the saloon, or even the foredeck, where the light and shadow, breezes and views combine to elevate the experience offer a real change of perspective.
Add to that a clean design for the accommodations, with the lines that do exactly what is necessary and provide a framework where owner and guests can create moments of living well. The design proves itself from every angle, inside and out.

TECHNICAL SPECIFICATIONS

DIMENSIONS
  • Length Overall LOA (Include swim platform exclude anchor roller) 21,4m / 70’
  • Hull Length LH ISO 8666 (Net GRP-swim platform excluded) 19,9m / 65’ 4’’
  • Waterine Length LWL ISO 8666 19,8m @ full load) / 64’ 11’’
  • Hull Beam BHmax ISO 8666 5,9m / 19’ 4’’
  • Max Draft – TMAX ISO 8666 1,3m @ full load) / 4’ 3’’
  • Loaded displacement mass-mLDC ISO 8666 47 tonnes / 103617 lbs
  • Height above the waterline Ha ISO 8666 6,33m (without equipment on top) / 20’ 8’’
  • Light craft condition mass – mLCC ISO 8666 39,5 tonnes / 87082 lbs
PERFORMANCE
  • Engines VOLVO D13 900HP
    VOLVO D13 1000HP x 2 (optional)
  • Marine gears ZF 335 IV
    ZF 500 IV (optional)
  • Reduction ratio 1.964:1
  • Transmission V Drive
  • Propeller diameter (max) 860 mm / 34’’
  • Max Speed 26 knots (with 900 Hp engine)
    28 knots (with 1000 Hp engine)
  • Cruising Speed 16 knots
  • Economy cruising Speed 10 knots
  • Consumption @ cruising speed 16 kn 130 l/hr / 34 gal
  • Consumption @ 10 kn 38 l/hr / 10 gal
  • Range 10 kn (incl. 10% reservoir) Approx. 1.200 NM
  • Certification CE Category A
TANKS
  • Diesel tank capacity 5250lt / 1387 gal
  • Fresh water tank 1400lt / 370 gal
  • Black water tank capacity 400lt / 105 gal
  • Gray water tank capacity 400lt / 105 ga

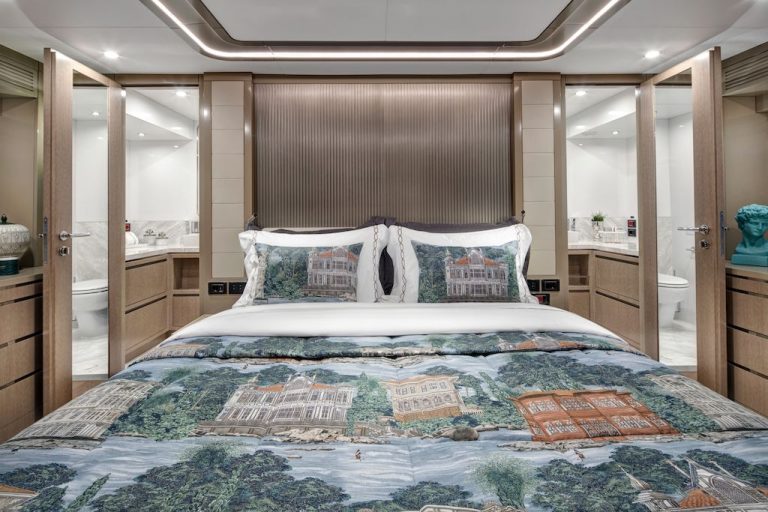

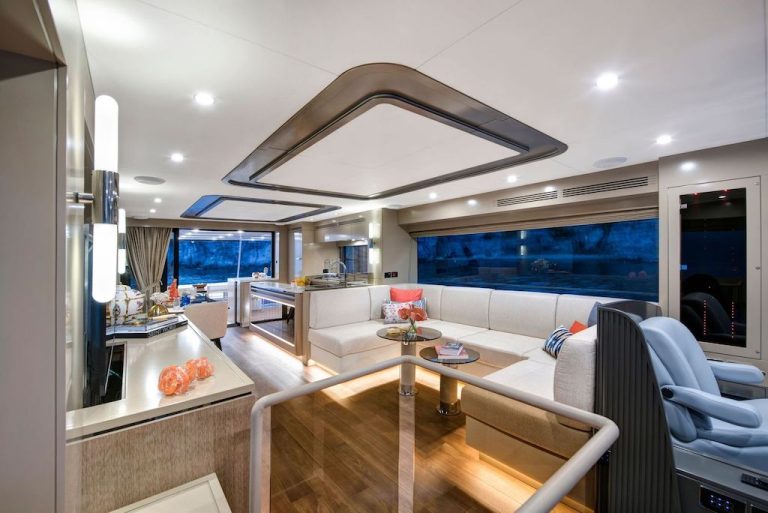

INTERIORS

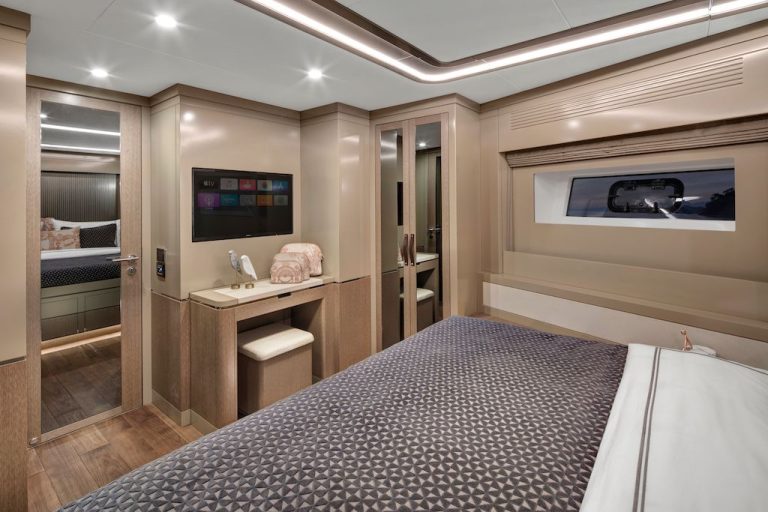

  • Cabins 3 standard + 1 (optional crew cabin)
  • Beds 6 + (2 crews)

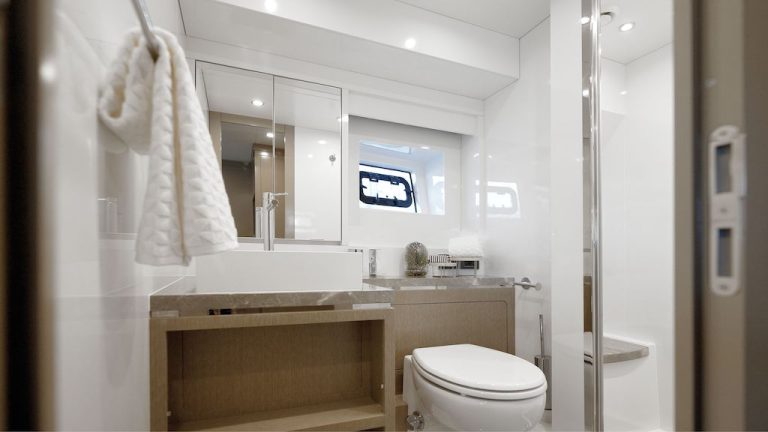

  • Heads 4 + 1 (crew head)
DESIGNERS
  • Building material GRP / Carbon hybrid fiber
  • Hull type Semi Displacement
  • Exterior styling & concept Frers Naval Architecture & Engineering
  • Interior Decor Cor. D. Rover Design Studio
  • Hull Design Frers Naval Architecture & Engineering

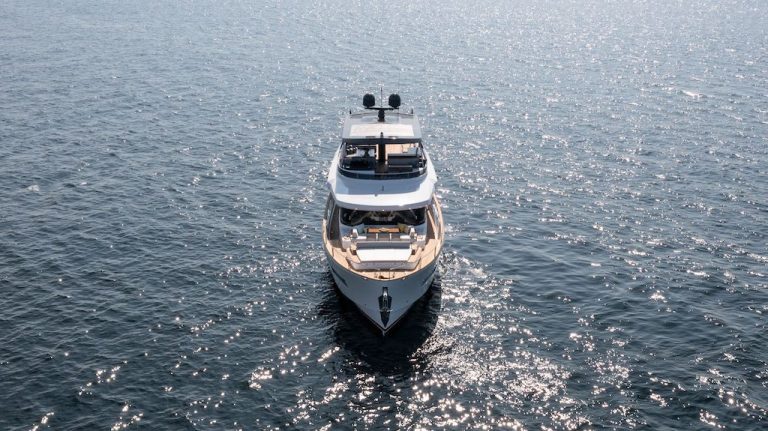

EXTERIOR

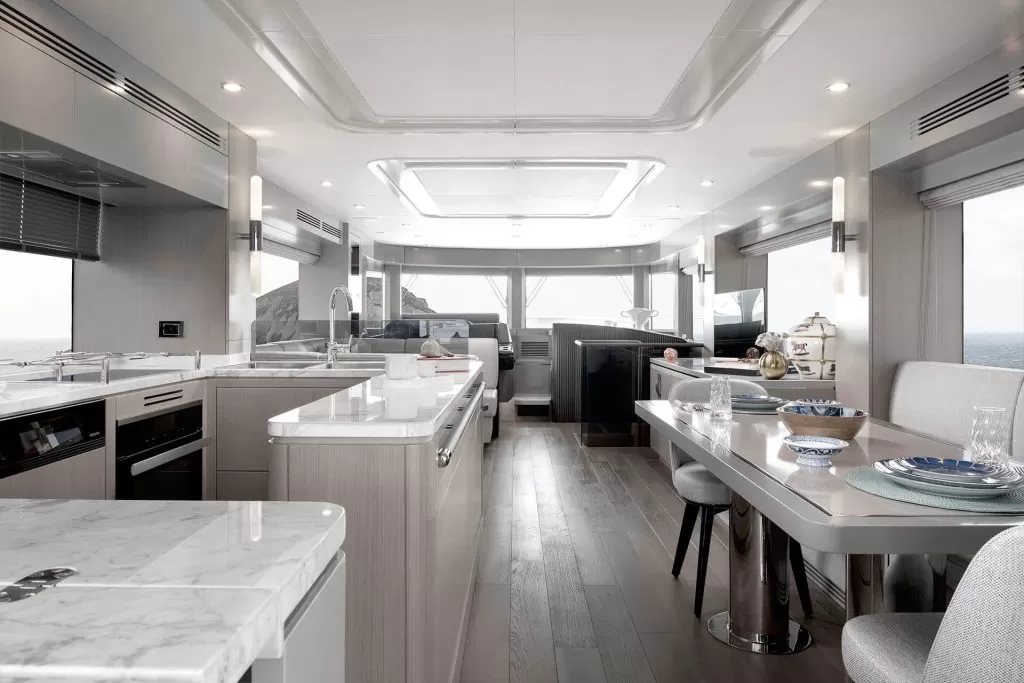

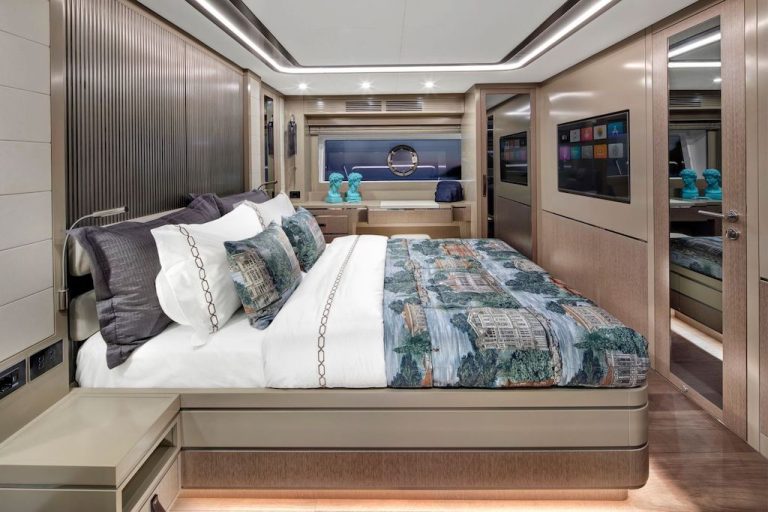

INTERIOR

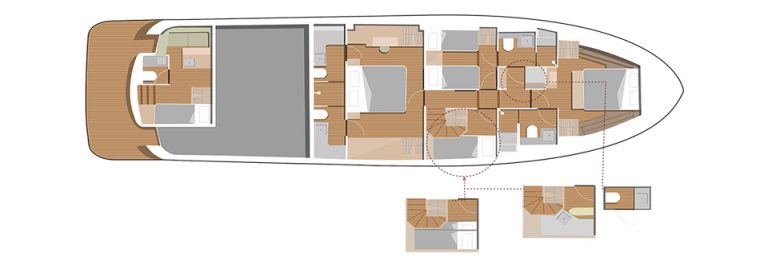

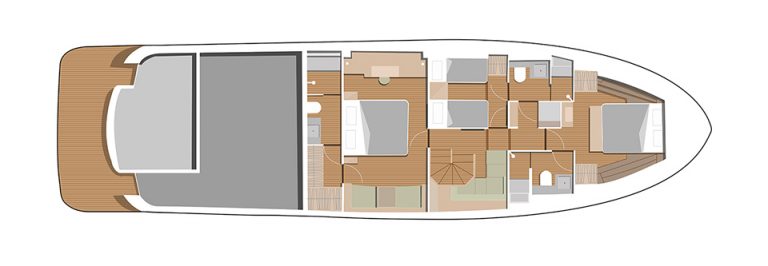

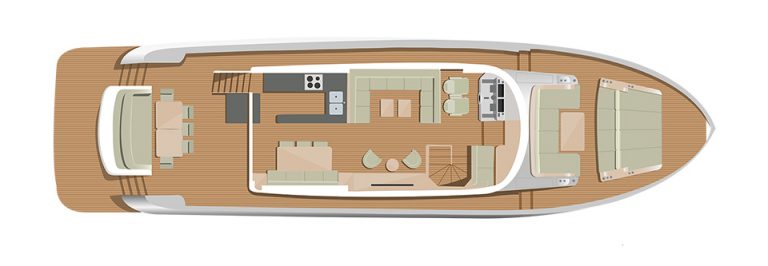

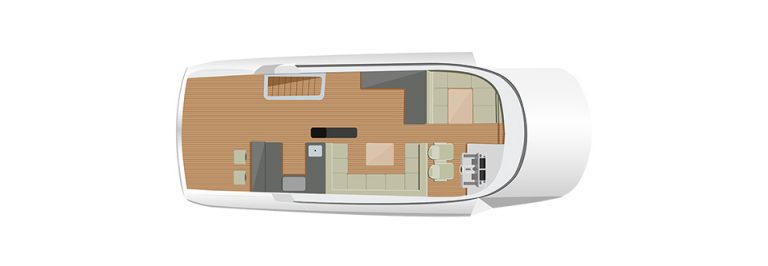

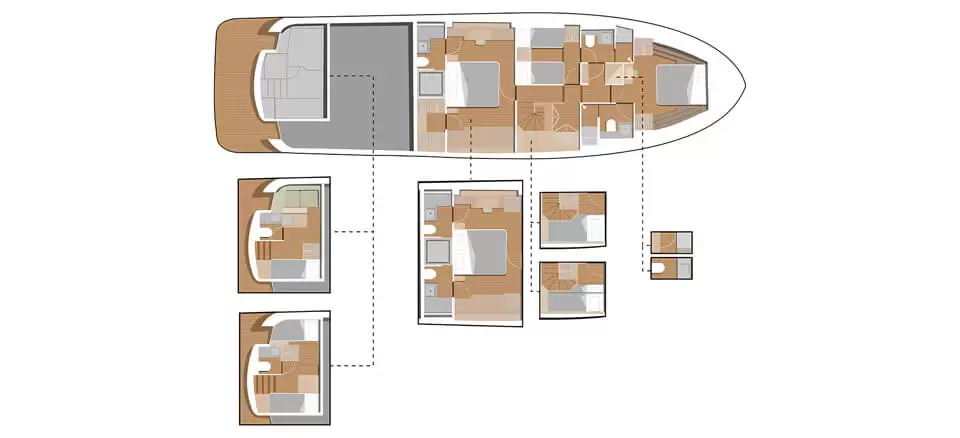

Layouts
